Leybold Tungsten Filament
Leybold tungsten filament belongs to electron beam tungsten filament, and with standard specifications. Leybold tungsten filament is mainly used in Europe, especially in Germany. And it has been the most popular place to apply this king of filament in their coating system.
Leybold tungsten filament is manufactured with the dimensions of Dia. 0.6mm, and normally they are separated into three equal length of 30mm, including the length of leg and length of the spiral. And one important factor for Leybold tungsten filament is that the legs are drawn from the center of spiral round.

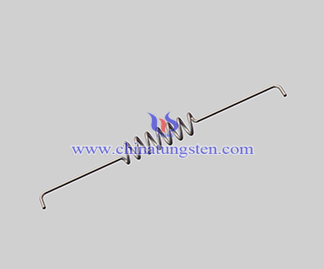

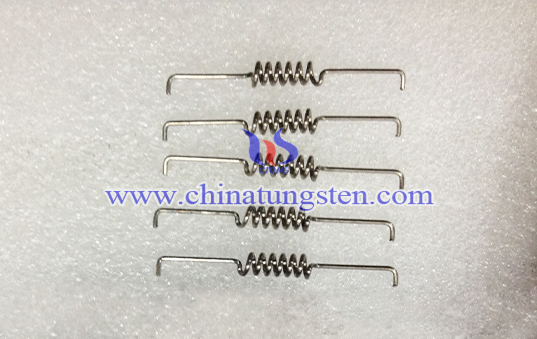

There are two types of Leybold tungsten filament, one is straight and one is with hook on the end of the legs.
Related Products:
Tungsten is widely used as refractory metals. In wire form, tungsten wire is essential for the production of lighting products and other goods where its high temperature properties are of use.
Non-Sag tungsten wires are indispensable for the lighting industry. For the necessary creep resistance, large elongated grains are considered as the desired microstructure. These large grains are obtained by primary and secondary recrystallization. In secondary recrystallization, often called abnormal grain growth, a few of the grains grow massive.
Doped tungsten, also called non-sag tungsten, is a remarkable kind of dispersion strengthened material. The term non-sag refers to the resistance of the wire against deformation or sagging under its own weight at working temperature. The intentional simultaneous use of K-compounds, Si-compounds, and Al-compounds as dopes for tungsten is in order to obtain a well-defined internal interlocking structure.
Important applications of cleaned tungsten wire are for the production
of coiled incandescent lamp filaments, cathode and support structures for power tubes, heating elements for high temperature furnaces and
evaporation sources in metalizing processes. Thicker wire sizes,
straightened, finish-ground and cut into rod pieces are widely used for
glass-to-metal seal lead parts in the lighting and electronic industries.
