Electron Beam Tungsten Filament Manufacturing Process

Inquiry & Feedback

As for electron beam tungsten filament, the choosing of material-tungsten-would be the first important step. Therefore, quality assurance of tungsten powder is the basic requirement for EB tungsten filament.

As for tungsten powder to tungsten wire, the control of manufacturing temperature, swaging of tungsten rod, speed to draw tungsten wire, etc has been the attention to produce suitable and qualified tungsten wire, which is the step in electron beam tungsten filament manufacturing process.

Model preparing would be another step in electron beam tungsten filament manufacturing process, as the right and accurate of model size would decide the dimension of EB tungsten filament.

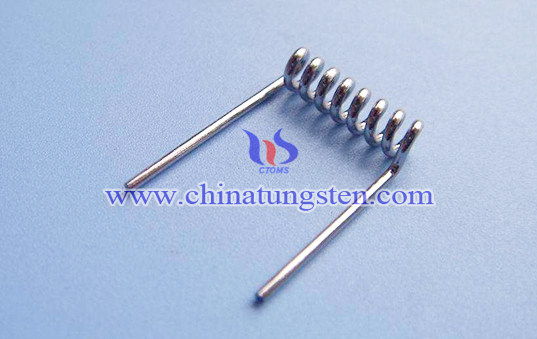

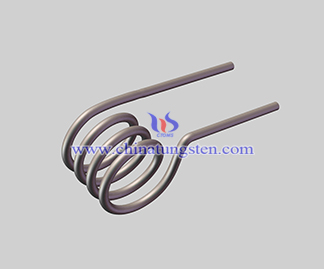

The shape of EB tungsten filament has been introduced after filaments made from model. The filaments are annealed in vacuum, stress-free and precisely aligned before they are inspected.

And inspection of quality of wire, suitable drawing and suitable design, accurate dimensions matched with drawing has been the most significant. As the testing result has been the direction of manufacturing process going on or stopped from the top.
